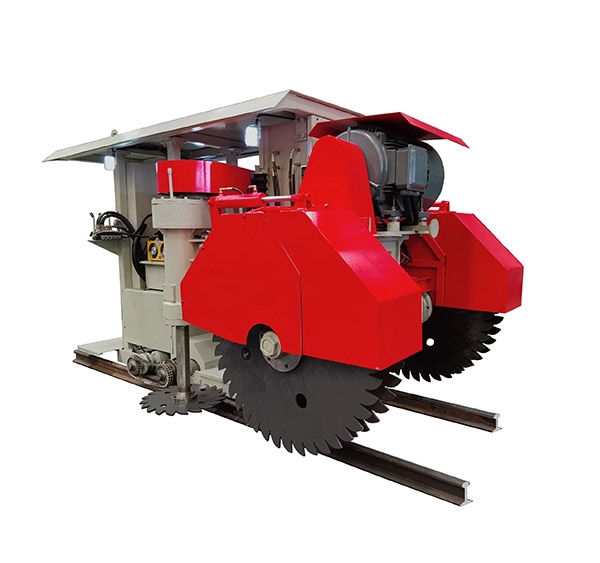

hualongmc@163.comHKSS-1400 is suitable for mining the sandstone, limestone and lieterate, cutting into blocks for building.
1) The longitudinal cutting relies on the large main column vertical guide rail, the structure of which is simple and strong, straight up and down runs stably.
2) Simple interface, easy to operate. A worker is able to employ it at best after having a try of few hours.
3) Crosscutting with the thick and big swing arm structure, the cutting is stable and fast.
4)Powerful motors with 93% efficiency, tall output and low consumption.
Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
華隆機械，數控五軸橋切機，四軸橋切機，4+1橋切，5+1橋切，三軸橋切機，紅外線橋切機，石材切機，石材加工廠設備，石材拋光機，石材拋光設備，石材加工中心，臺面加工中心，水刀，水刀切割機，礦山開采設備，礦山圓盤鋸，圓盤雙刀鋸，礦山機，礦山鋸。
| 參數 | 單位 | HKSS-1400 | |
| 縱向鋸片直徑 | Diameter of the vertical | mm | 1330 |
| 橫向鋸片直徑 | Diameter of the horizontal | mm | 600 |
| 鋸片厚度 | Blade Thickness | mm | 12 |
| 最大切割深度 | Max.cutting depth | mm | 500 |
| 切割寬度 | cutting width | mm | 1350-1750 |
| 行進速度 | velocity of approach | m/min | 10-45 |
| 升降油缸最大行程 | Max.stroke of the lifting cylinder | mm | 700 |
| 縱向主電機功率 | Vertical main motor power | kw | 75 |
| 橫向主電機功率 | Horizontal main motor power | kw | 45 |
| 牽引電機功率 | power of traction motor | kw | 5.5 |
| 液壓站電機功率 | Hydraulic station motor power | kw | 5.5 |
| 總功率 | gross power | kw | 133 |
| 整機重量 | gross weight | kg | 6000 |
| 外形尺寸 | Dimensions | mm | 4200×2060×2200 |
